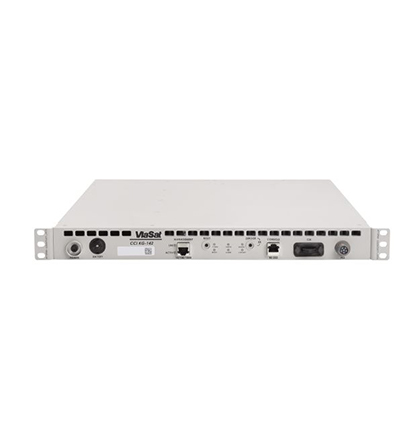

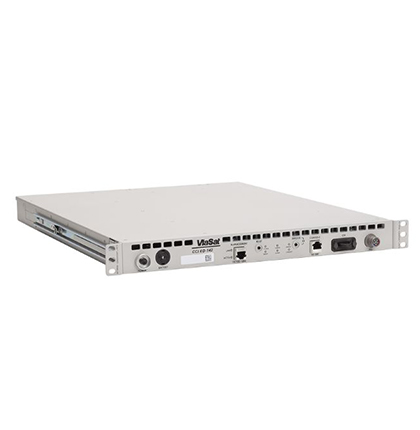

As the first-to-market National Security Agency (NSA)-certified Type 1 Ethernet Data Encryption-Cryptographic Interoperability Strategy (EDE-CIS) Media Access Control Security (MACsec) Ethernet encryptor designed to operate at multiple speeds up to 200 Gbps (aggregate), the Viasat KG-142 protects Top Secret/Sensitive Compartmented Information (TS/SCI) and below by delivering reliable, network-efficient, seamless data protection.

·       Ethernet Protection
·       100 Gbps (200 Gbps aggregate)
·       1 x 10 Gbps, 2 x 10 Gbps, 4 x 10 Gbps (20 Gbps, 40 Gbps, 80 Gbps aggregate)
·       Multiple Point-to-Point with VLAN ETT
·       Near-zero traffic latency
·       Supports long and short reach optics
·       Software upgradeable to EDE-CIS and E-TFS
·       Metro Ethernet Forum (MEF) and IEEE compliant frame forwarding
·       NTP clock sync
·       Syslog support
·       Supports Traffic Flow Security (TRANSEC)
·       Configurable address filtering to work through bridge applications
·       Supports 99.999% reliability via N+1 redundancy system architectures Hassle-Free Setup and Maintenance
·       SNMP and browser-based device management configurations
·       VINE Manager™ software provided at no extra cost; centrally manage Viasat Layer 2 and 3 (HAIPE®) network encryptors
·       Automated key management
·       Supports Link-OAM
·       Dual redundant hot-swappable power supplies
·       Field-replaceable fans Primary Applications
·       Data center interconnectivity
·       Content distribution network
·       Big data processing
·       Network resiliency, load balancing, and synchronization
·       Operational continuity/disaster recovery (data mirroring, remote backup)
